The Rise of Foamed Concrete in Infrastructure
Foamed concrete is gaining popularity among designers and engineers as a versatile, lightweight material for road and bridge construction. With densities ranging from 500kg/m³ to 1400kg/m³, it has proven effective in a wide range of engineering applications.
One of its most valuable uses is in bridge and road deck reinforcement. When older structures require encapsulation or when voids need filling, foamed concrete can be pumped over long distances and placed seamlessly within or around piers. Its fluid nature ensures complete filling, while its lightweight properties reduce foundation loads and enhance structural strength.
Applications in Bridges
- Void Infill: Foamed concrete is ideal for filling gaps between bridge piers or spans.
- Deck Support: It encapsulates and supports the underside of decks, improving durability.
- Lightweight Reinforcement: Used for decks and abutments, it strengthens structures without adding excessive weight.
Because foamed concrete expands significantly when mixed, fewer deliveries are required compared to traditional concrete, reducing site traffic and environmental impact.
Road Trenches
Foamed concrete is also widely used as trench infill. Its aerated composition encapsulates pipes and services, ensuring permanent reinstatement. Unlike traditional materials, it requires no compaction and can be placed at depths of up to 1 metre.
This makes it compliant with roadwork standards and highly practical for utility reinstatement projects. Its ease of tooling also allows for future excavation without difficulty.
Case Applications
Bridge Strengthening
Foamed concrete has been successfully used to strengthen multi-span bridges, where large volumes (over 3000m³) were required. Its ability to flow over long distances and self-consolidate reduced manpower needs and lowered project costs.

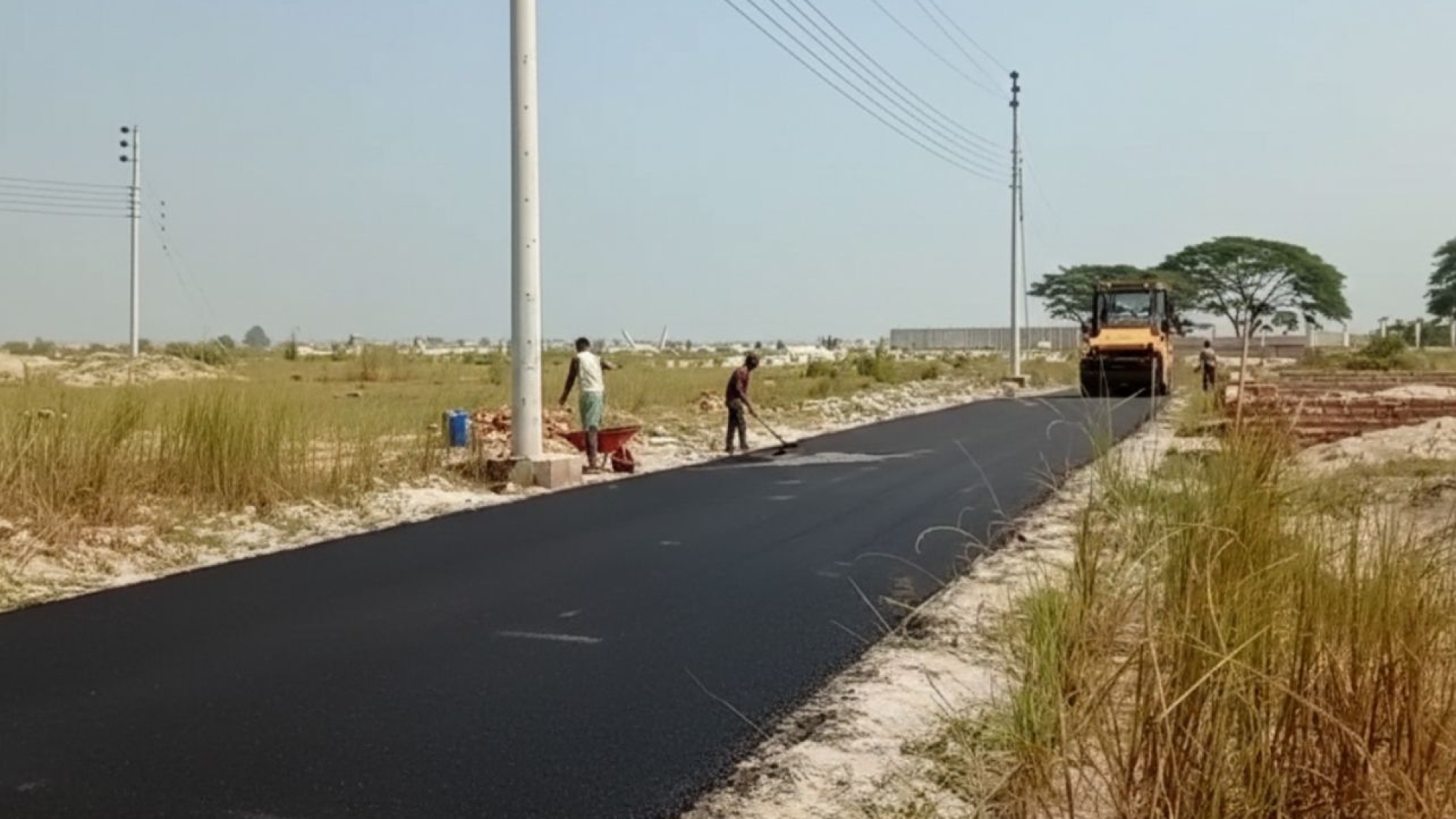

Road Sub-Bases
In flood-prone areas, foamed concrete has been applied as a road sub-base. Its lightweight density minimizes settlement while displacing water effectively. Once set, standard road surfacing preparations can be applied, making it a reliable solution for challenging soil conditions.
Technical Advantages
- Density Range: 500kg/m³ – 1500kg/m³
- Strength: 1–5 N/mm²
- Self-Consolidating: No vibration or compaction required
- Efficiency: Every 6m³ of base material expands into 25m³ of foamed concrete
Conclusion
Foamed concrete is proving to be a gamechanger in road and bridge construction. Its lightweight, durable, and self-consolidating properties make it ideal for void filling, trench reinstatement, and sub-base construction. By reducing costs, saving time, and minimizing environmental impact, foamed concrete is setting new standards for modern infrastructure projects.
